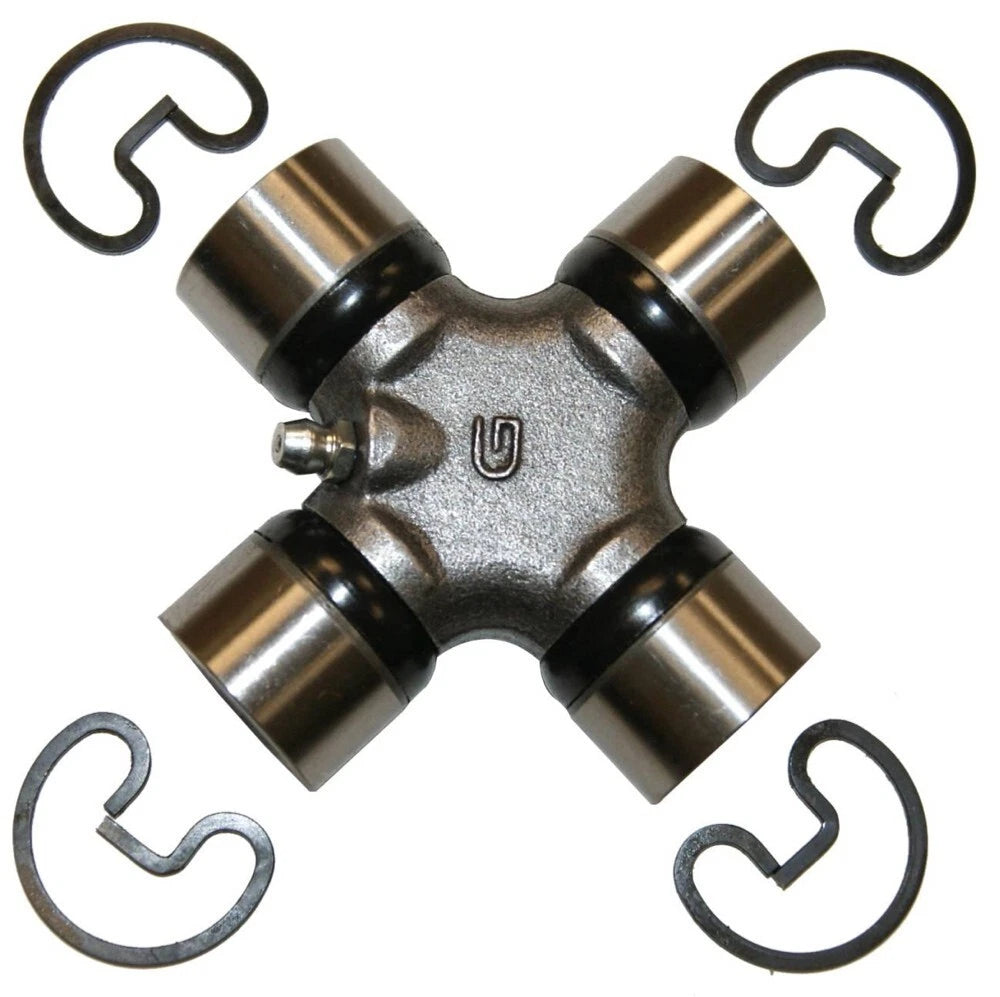

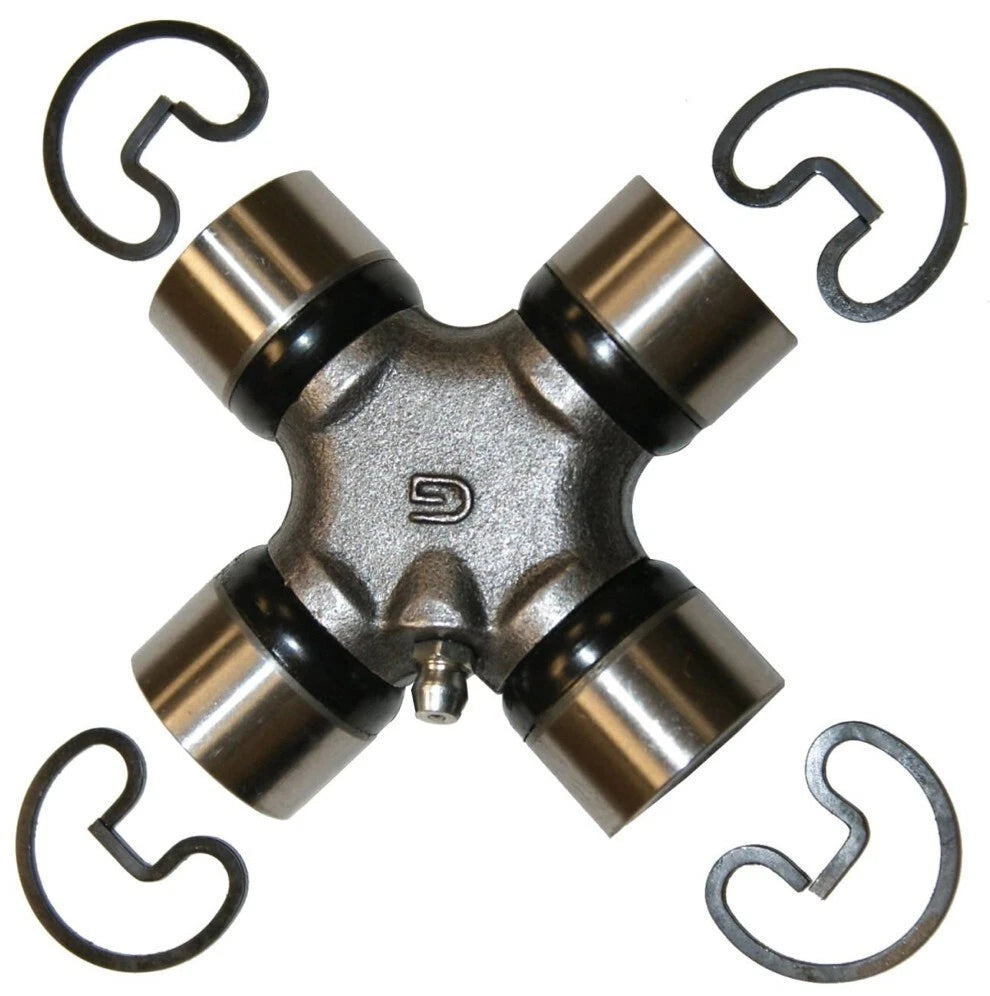

1 Universal Joint Kit GMB Front and/or Rear Greasable W. Snap Rings
  • 1 Universal Joint Kit GMB Front and/or Rear Greasable W. Snap Rings
  • 1 Universal Joint Kit GMB Front and/or Rear Greasable W. Snap Rings
  • 1 Universal Joint Kit GMB Front and/or Rear Greasable W. Snap Rings
  • 1 Universal Joint Kit GMB Front and/or Rear Greasable W. Snap Rings
1 Universal Joint Kit GMB Front and/or Rear Greasable W. Snap Rings

1 Universal Joint Kit GMB Front and/or Rear Greasable W. Snap Rings

$20.00 $32.81

Also Fits:

Please do not make any assumptions as far as fitment is concerned. You must verify that this part will fit your exact model and specifics by doing the following:

1) See the table below if your model is included. If so, then

2) Go to the compatibility chart of the listing above.  If you can’t see the compatibility chart, then click on “see compatible vehicles” at the top of the listing to display the chart.

3) Locate your vehicle in the chart by year, make, model….etc.

4) The left most column, is the notes column with important details. Any restrictions or specifics for which this part will or will not fit will be included in these notes.



In general, the drive of your vehicle (4WD, AWD, ….etc) needs to be known.  Also how many drive shafts does your vehicle have? On which drive shaft you want to install the U-Joint and where on that shaft (front, rear, at transmission….etc.)

AMERICAN MOTORS 1967-1984
AVANTI 1972-1984
BUICK 1975-1979
CHECKER 1964-1976
CHEVROLET 1954-2012
CHRYSLER 2009
DODGE 2000-2009
EDSEL 1959
FORD 1953-2010
GMC 1961-2011
HONDA 1994-2001
INFINITI 2004-2007
INTERNATIONAL 1958-1978
ISUZU 1991-2008
JAGUAR 1963-1987
JEEP 1960-2006
LAND ROVER 1958-1974
LINCOLN 1956-1985
MAZDA 1994-2010
MERCEDES-BENZ 2003
MERCURY 1955-2011
MITSUBISHI 2007-2009
NISSAN 1989-2014
OLDSMOBILE 1957-1980
PONTIAC 1967-1993
RAM 2011
ROVER 1959-1973
TOYOTA 1994-2005
VOLVO 1975-1991

More Information:

Greasable; Grease Fitting in Cross; 1.062" Bearing Cap Diameter
GMB is one of the world’s largest Universal Joint manufacturers with over 70 years of experience. Each Universal Joint Design from GMB is manufactured meet or exceed OE specifications.



Features & Benefits:
  • Special Chrome-Molybdenum Alloy Steel for superior corrosion resistance
  • Exact fit snap ring included
  • Elliptical bearing design delivers reliable performance
  • Multi-stage testing prior to assembly for maximum quality control
  • Proven reliability in off-road conditions and harsh environments

The key to maximizing the performance and durability of any universal joint - as well as related parts such as drive shafts - is preventative maintenance. Universal joints are designed to last the life of the vehicle, but can wear down or break if neglected or overloaded. Follow these tips to avoid premature failure of your vehicle's drivetrain:

  • If a greasable universal joint is installed, periodically check them to ensure they are properly greased (at the very least, at every oil change).
  • Inspect the yokes that hold your universal joints for cracks, stress marks, or worn or damaged seal mating surfaces, and replace them if any of these are present.
  • Check your seals for signs of leakage, and replace them if leaks are present.
  • Periodically check for drive shaft play, which is an indication that a universal joint or seal has failed and needs to be replaced.
  • Inspect drive shafts for cracks, stress marks, dents, or bends, and replace them if any of these are present.
Specifications
Bearing Cap Axis 1 Diameter (IN) 1.06
Bearing Cap Axis 1 Diameter (MM) 27
Bearing Cap Axis 2 Diameter (IN) 1.06
Bearing Cap Axis 2 Diameter (MM) 27
Bearing Cap Type Round Plain
Greasable Yes
Length Axis 1 (IN) 3.22
Length Axis 1 (MM) 81.79
Length Axis 2 (IN) 3.22
Length Axis 2 (MM) 81.79
Lock Ring Location External
Material Steel

OEM / Interchange Numbers: 01Y18397, 03521, 0437104010, 0437104020, 043710C010, 10065, 11270, 1150809, 1220786, 1220998, 1321115, 14067678, 15617322, 1562019, 1563060, 157734, 1643242, 164369, 1687692, 1690409, 1698021, 1818920, 1818921, 19299817, 1Y7039, 201SJ29, 21C7039, 21C7039A, 231136, 231179, 231189, 231311, 2325029, 2325829, 2354320, 2362830, 2370728, 2402E4635A, 2448100, 2448382, 2460455, 26015249, 2Y4277, 3117373, 3145473, 3156293, 3188632, 3195054, 3202655, 3202657, 3207885, 3208473, 371263S525, 371263S526, 3713926, 3741635, 3741653, 3750686, 3827046, 3828469, 3830580, 3849500, 386451, 3889690, 3910235, 3953659, 3955571, 39626S3825, 4050350, 410529, 436144, 437104010, 437104020, 4485624, 4487436, 4487847, 4488016, 4488106, 4651538, 4728937, 4882793, 4L5Z4635BA, 5015694AA, 5015694AB, 504439, 5057939, 5161766AA, 518645, 518648, 52347696, 53000029, 542544, 570817, 601557, 614512, 617512, 63569, 64580, 65MU26, 6L2Z4635A, 7826048, 7849090, 8126613, 8126614, 8127332, 8130297, 89029289, 8953000029, 8970202790, 8971821650, 9023673, 93521, 936686, 943648, 944562, 97020279, 97182165, 97185603, 994173, 9C4537, 9C5437, A9674635, A9LY4635A, AH100026, AN172734, AN32800, B6D7039A, B6S7039A, B6TZ4635A, B7A7039A, B7AZ4635A, B7S7039A, C1VV4497A, C1VV4997A, C3AZ4635C, C4TA4635A, C4TA4724A, C4TZ4635A, C4TZ4724A, C5TZ4635C, C5TZ4635D, C6TZ4635C, D26204, D70629, E9SZ4635W, F1TZ4635A, F1TZ4635C, F2AZ4365A, F2AZ4635A, FL5153X, H212183, H584813, J3208473, J8126613, J8126614, K956438, LD44610A, MD2683L, MFK1039, MFK1039A, MFK1039B, MFK7039, MFK7039A, MFK7039B, N14230, N9082, O1Y18397, O1Y7039, S201007, S301026, XL512825, XU501497, XY501497, Z1C18397, Z1C18397B, ZZL025060, ZZL125060, ZZL225060, ZZL225060A, ZZM125060.

Warranty Information:
12 month/12,000 miles
