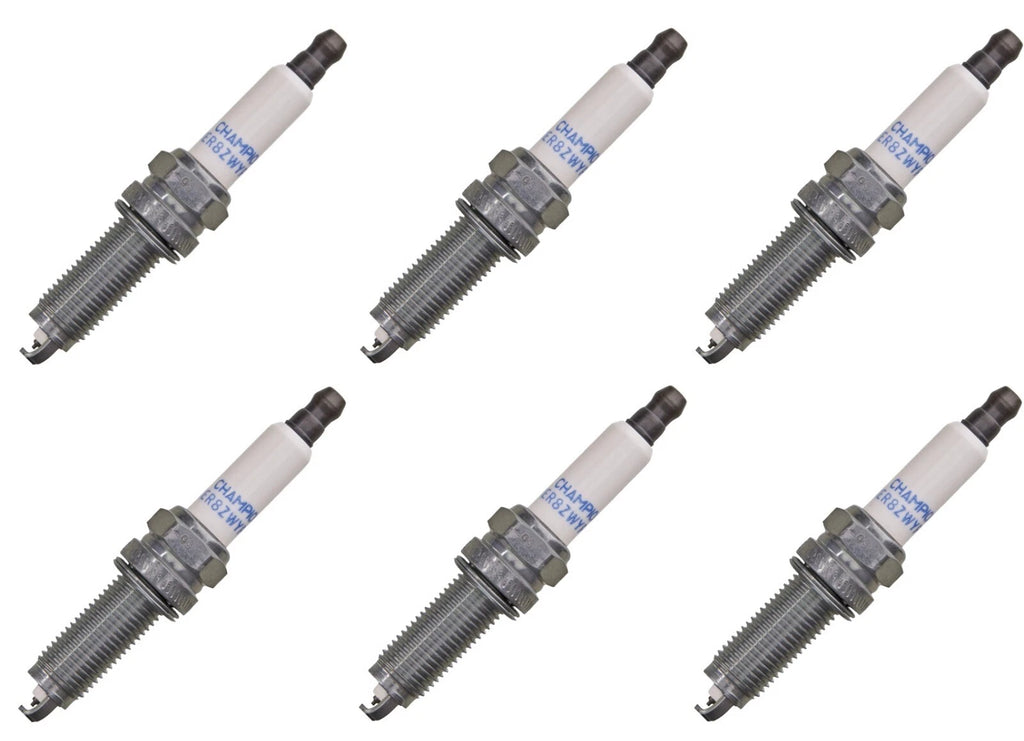

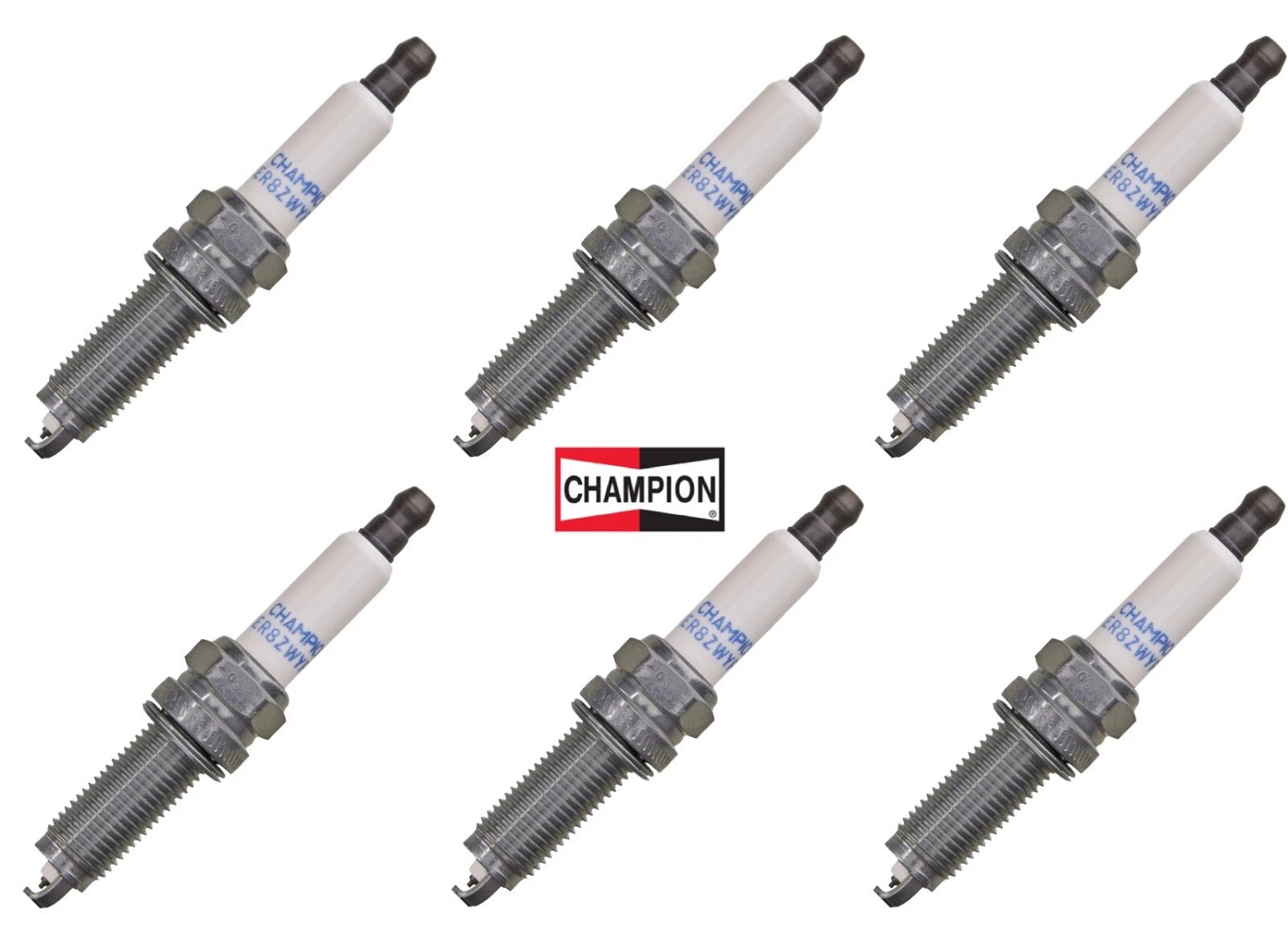

Set 6 Spark Plugs Champion 9417 Iridium For Acura Honda Hyundai Jeep Pre gapped
  • Set 6 Spark Plugs Champion 9417 Iridium For Acura Honda Hyundai Jeep Pre gapped
  • Set 6 Spark Plugs Champion 9417 Iridium For Acura Honda Hyundai Jeep Pre gapped
  • Set 6 Spark Plugs Champion 9417 Iridium For Acura Honda Hyundai Jeep Pre gapped
  • Set 6 Spark Plugs Champion 9417 Iridium For Acura Honda Hyundai Jeep Pre gapped
  • Set 6 Spark Plugs Champion 9417 Iridium For Acura Honda Hyundai Jeep Pre gapped
  • Set 6 Spark Plugs Champion 9417 Iridium For Acura Honda Hyundai Jeep Pre gapped
Set 6 Spark Plugs Champion 9417 Iridium For Acura Honda Hyundai Jeep Pre gapped

Set 6 Spark Plugs Champion 9417 Iridium For Acura Honda Hyundai Jeep Pre gapped

$59.00 $77.00

Fits: (Please review compatibility chart to make sure your model is listed for fitment. Be sure to read the notes column for important details pertaining to your specific model).


ACURA MDX 2019-2022
ACURA RLX 2014-2020
ACURA TLX 2019-2020
CHRYSLER PACIFICA 2017-2024
CHRYSLER VOYAGER 2020-2024
DODGE DURANGO 2016-2024
HONDA HR-V 2016-2022
HONDA ODYSSEY 2011-2022
HONDA PASSPORT 2019-2022
HONDA PILOT 2009-2022
HONDA RIDGELINE 2009-2022
JEEP GLADIATOR 2020-2024
JEEP GRAND CHEROKEE 2016-2024
JEEP GRAND CHEROKEE L 2021-2024
JEEP GRAND CHEROKEE WK 2022
JEEP WRANGLER 2018-2024
PORSCHE CAYENNE 2011-2018
RAM 1500 2019-2024
RAM PROMASTER 1500 2022-2024
RAM PROMASTER 2500 2022-2024
RAM PROMASTER 3500 2022-2024

More Information:
Iridium; Pre-Set Gap: 0.042"

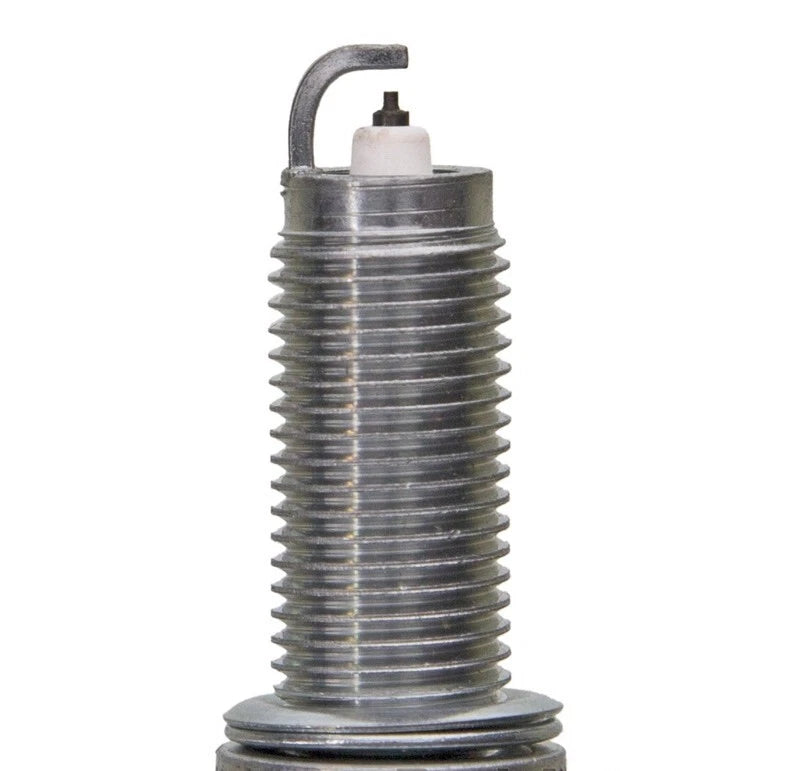

Champion Iridium spark plugs offer maximum performance regardless of engine or ignition type. Each plug has an extremely fine-wire iridium center electrode that is "laser-locked" to the center electrode, and a platinum V-trimmed ground electrode to ensure the longest life and greatest erosion resistance.

Features & Benefits:
  • Platinum ground to ensure high performance and long life
  • Maintains stable operating temperature under all engine loads
  • Greatest engine performance regardless of engine type or ignition system
  • Extremely fine-wire iridium center electrode laser-locked to center electrode
  • Exclusive Heat-active Alloy allows electrodes to reach optimal temperature quickly.
Specifications
Center Electrode Diameter (IN) 0.028
Center Electrode Tip Material Iridium
Electrical Terminal Type Non-Removable Nut
Gap Style J Gap
Ground Electrode Core Material Platinum
Ground Electrode Material Platinum
Ground Electrode Quantity 1
Ground Electrode Tip Design J Gap
Hex Size (IN) 0.625
Hex Size (MM) 15.880
Hex Type Hex
Indexed No
Installed Height (in) 2.05
Insulator Height (in) 0.079
Insulator Projection (IN) 0.079
Manufacturer Heat Range 8
Plug Type RER8ZWYPB4
Pre-Gap Size (IN) 0.042
Pre-Gap Size (MM) 1.05
Reach (IN) 1.103
Resistor Type Yes
Seat Type Flat
Thread Diameter (IN) 0.472
Thread Diameter (MM) 12.000
Washer Included Yes
Washer Type Crush

OEM / Interchange Numbers: 12290R1AA01, 12290R1AA010M2, 12290R1AH01, 12290R1AH011M1, 12290R1GH01, 12290R40A01, 12290R40A02, 12290R41L01, 12290R71L01, 12290R9PA0, 12290RL6G01, 12290RN0A01, 68225755AA, SP149125AD, SP149125AE, SP225755AA, SP225755AB

CHAMPION Warranty Information:
 Iridium plugs 7 years
